Product Description

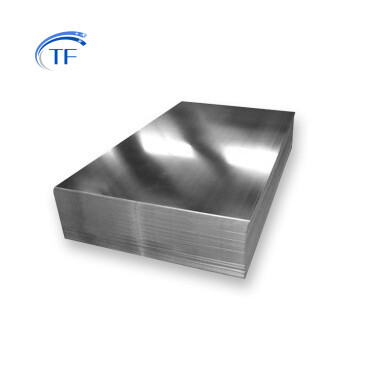

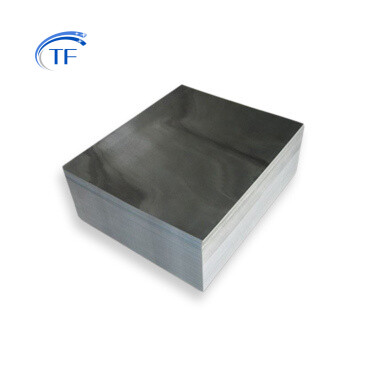

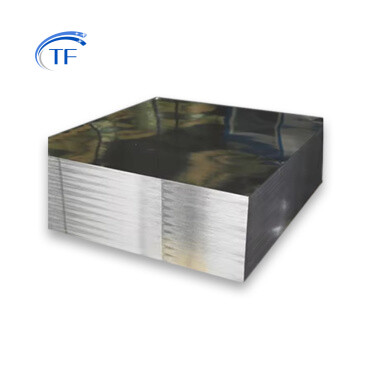

Product Name | Tinplate |
Thickness | 0.18mm-0.50mm |
Width | 260mm-980mm |
Length | Support Customization |
Tin Coating | General: 2.8g or 5.6g, can be produced according to your needs |
Substrate Type | MR / SPCC / L / D |
Reference Standard | GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203 |
Surface State of Tinplate
Surface State | Features |
Light Surface | Electroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern |
Stonetextured Surface | Electroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction |
Silvercolor Surface | Electroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull |
Mattless Surface | The surface of the substrate is rough and dull, and the tin plating layer is not soft melting |
Substrate Type
Substrate Type | Introduction |
MR | The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance |
L | Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate |
D | Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial |
SPCC | Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes. |
Coating Weight
Classification | Representation of Tin Coating Weight | Tin Plating Nominal Weight (g/m2) | Minimum Average Tin Plating Weight (g/m2) |
Equal Tin Plating (E) | 1.1/1.1 | 1.1/1.1 | 1.8 |
2.2/2.2 | 2.2/2.2 | 4.0 | |
2.8/2.8 | 2.8/2.8 | 5.0 | |
5.6/5.6 | 5.6/5.6 | 10.5 | |
Differentiated Tin Plating (D/A) | 2.2/1.1 | 2.2/1.1 | 2.0/0.9 |
2.8/1.1 | 2.8/1.1 | 2.25/0.9 | |
5.6/1.1 | 5.6/1.1 | 5.05/0.9 | |
2.8/2.2 | 2.8/2.2 | 2.25/2.0 | |
5.6/2.2 | 5.6/2.2 | 5.05/2.0 | |
5.6/2.8 | 5.6/2.8 | 5.05/2.25 |
Chemical Composition
No. | C | Si | Mn | S | P | Cu | Ni | Cr | Mo |
D | 0.12 | 0.03 | 0.6 | 0.05 | 0.02 | 0.2 | 0.15 | 0.1 | 0.05 |
L | 0.13 | 0.03 | 0.6 | 0.05 | 0.15 | 0.03 | 0.04 | 0.06 | 0.05 |
MR | 0.13 | 0.03 | 0.6 | 0.05 | 0.2 | 0.2 | 0.2 | 0.1 | 0.05 |
Mechanical Properties & Applications
Standard Name | Nominal Hardness HR30TS | Strong Yield MPA | Scope of Application |
T-1 | 49 | 230 /-50 | Drawing requirements, drawn ironing cans, nozzles, nozzles, closures |
T-2 | 53 | 245 /-50 | Ring and plug, dome, closure, shallow pull and special tank parts |
T-2.5 | 55 | 260 /-50 | Battery cell, small can cover and body |
T-3 | 57 | 275 /-50 | Cans and cans, large diameter caps, crown caps |
T-3.5 | 59 | 290 /-50 | Can body, closure and crown lid |
T-4 | 61 | 340 /-50 | Can body, closure and crown lid |
T-5 | 65 | 480 /-50 | Cans and cans |

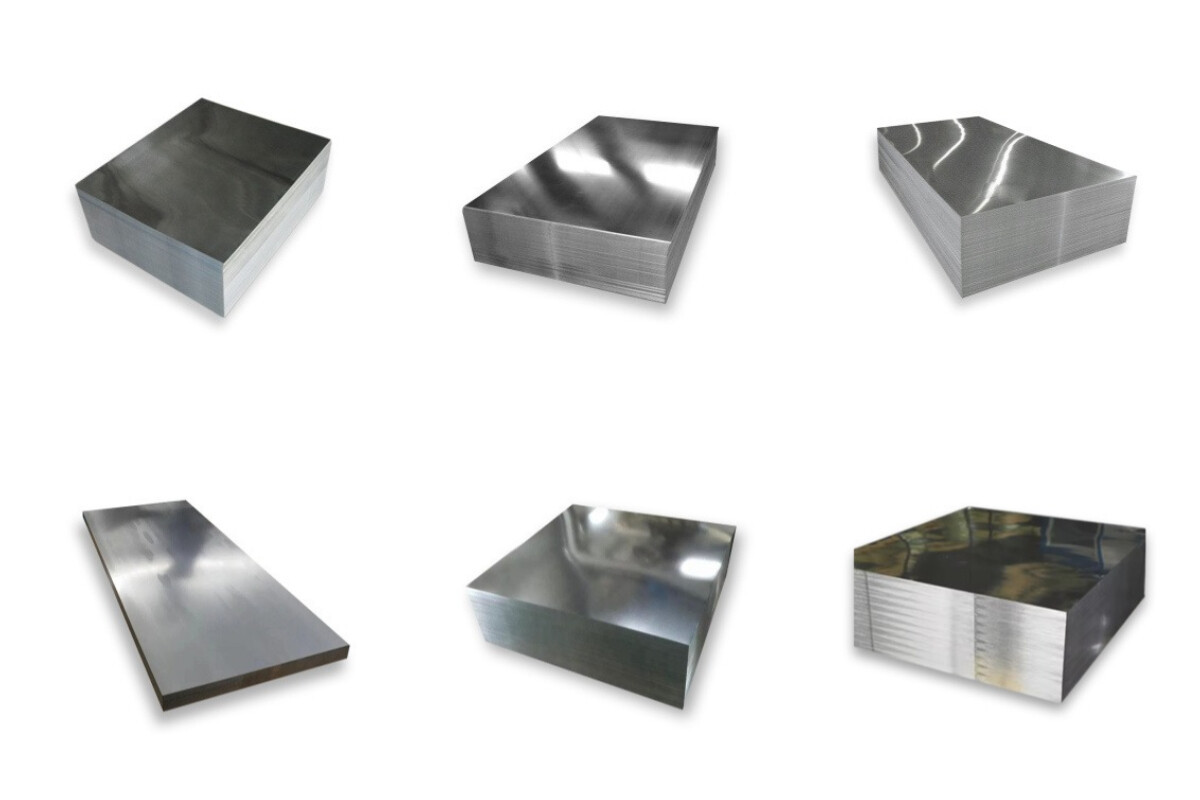

Product Display
Application
Packaging and transportation
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
